Creating content and building apps for phones in InDesign

Follow

Alternate layout

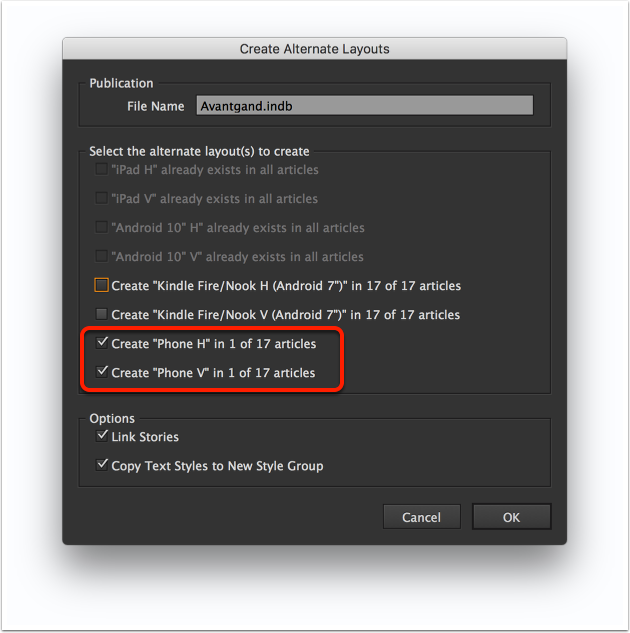

In Twixl Publisher, you can create an alternate layout for phones. To do this for an existing document, open your publication, then click the 'Alternate layouts" option in the plug-in and you'll have an extra option to create a "Phone V" and a "Phone H" version of your content. If you only want to create a phone layout in a new article, select the 'Phone Portrait' or 'Phone Landscape' template.

IMPORTANT NOTE:

Do not use Adobe's built-in alternate layout "iPhone" from the Pages panel. Use the Twixl Publisher plug-in panel to create the "Phone V" and "Phone H" versions instead.

Alternate Layouts for Phones

Dimensions

The "Phone V" alternate layout is 320 pixels wide and 568 pixels long. The "Phone H" is 568 pixels wide and 320 long.

When exporting, the Twixl Publisher plug-in will automatically generate three renditions of the phone version:

  • 640 x 1136 / 1136 x 640 pixels (for iPhone 4/4S, 5/5S as well as iPod Touch 5th generation)
  • 750 x 1334 / 1334 x 750 pixels (for iPhone 6)
  • 1242 x 2208 / 2208 x 1242 pixels (for iPhone 6 Plus)

For Android phones, the image dimension closest to the screen resolution will be used, with a preference for scaling down instead of scaling up.

Image resolution

If you are creating content for phones, note that you should have an effective ppi of 280 in order to obtain optimal output quality on an iPhone 6 Plus.

Automatic publication split

Twixl publications uploaded to the Twixl Distribution Platform will be split automatically into separate versions for the different platforms (iPad, iPad retina, Android 10" & Android 7", and 3 sizes for phones).

You can check if you uploaded a publication that supports all the platforms by checking the file sizes of the publication.

The advantage is that a reader will only need to download the contents relevant for his device.

Export

When exporting a 'Phone' layout from InDesign, Twixl Publisher will automatically generate different phone resolutions based on the iPhone 5/5S, iPhone 6 and iPhone 6 Plus formats. For Android phones, Twixl Publisher will automatically select the version that is the closest to one of these three formats.

Creating a build that supports phones

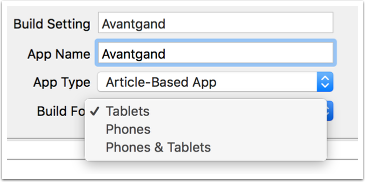

In Twixl Publisher 4.0, a new "Build for" option in the build settings for your app offers three choices:

  • Tablets (only)
  • Phones (only)
  • Tablets & Phones (universal)

This let you decide which type of app you want to create.

IMPORTANT NOTE:

Building for phones requires that your InDesign export contains a 'Phone' alternate layout. Also, if you submit a universal iPhone/iPad app to Apple, it is not possible to later update this to a 'Tablet only' or 'Phone only' version.

Creating a build that supports phones

Artwork

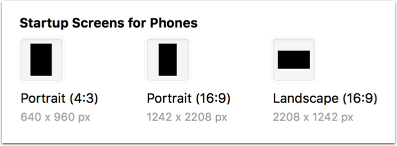

You will need to add different versions of your startup screens, with the following resolutions:

  • Portrait (4:3): 640 x 960 pixels
  • Portrait (16:9): 1242 x 2208 pixels
  • Landscape (16:9): 2208 x 1242 pixels
Startup Screens for Phones

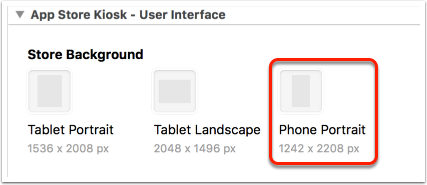

For App Store kiosk apps, you can also adjust the Store background.

User Interface
